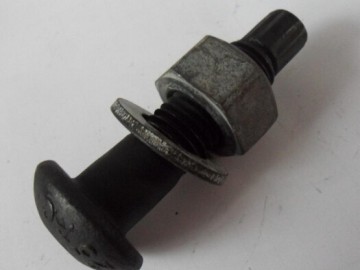

產品介紹
|
螺紋規格d |
M16 |
M20 |
M22 |
M24 |
M27 |
M30 |
|
|
螺距p |
2 |
2.5 |
2.5 |
3 |
3 |
3.5 |
|
|
da |
max |
18.83 |
24.4 |
26.4 |
28.4 |
32.84 |
35.84 |
|
ds |
max |
16.43 |
20.52 |
22.52 |
24.52 |
27.84 |
30.84 |
|
min |
15.57 |
19.48 |
21.48 |
23.48 |
26.16 |
29.16 |
|
|
dw |
min |
27.9 |
34.5 |
38.5 |
41.5 |
42.8 |
46.5 |
|
dk |
max |
30 |
37 |
41 |
44 |
50 |
55 |
|
k, |
公稱 |
10 |
13 |
14 |
15 |
17 |
19 |
|
max |
10.75 |
13.9 |
14.9 |
15.9 |
17.9 |
20.05 |
|
|
min |
9.25 |
12.1 |
13.1 |
14.1 |
16.1 |
17.95 |
|
|
k' |
min |
12 |
14 |
15 |
16 |
17 |
18 |
|
k" |
max |
17 |
19 |
21 |
23 |
24 |
25 |
|
r |
min |
1.2 |
1.2 |
1.2 |
1.6 |
2 |
2 |
|
db |
max |
11.3 |
14.1 |
15.6 |
16.9 |
19.3 |
21.4 |
|
min |
11 |
13.8 |
15.3 |
16.6 |
18.7 |
20.8 |
|
|
dc ≈ |
12.8 |
16.1 |
17.8 |
19.3 |
21.9 |
24.4 |
|
|
de ≈ |
13 |
17 |
18 |
20 |
22 |
24 |
|
